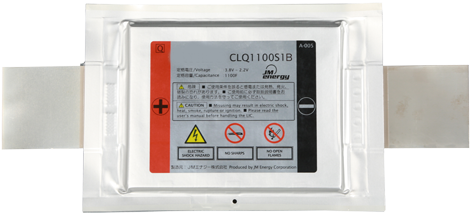

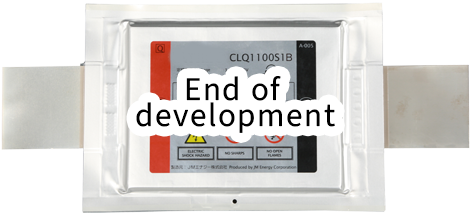

Laminated Cell
Laminate cells are thin, lightweight, compact, excellent in heat dissipation, and can be applied to a wide range of applications.
- High operating voltage (3.8 V)
- High output (～800 A chargeable / dischargeable)
- High energy density (～40wh / L)
- Rapid charging / discharging due to large current (100 A or more)
- High durability (over 1 million cycles)
- Wide range of operating temperature (-30℃ to 70℃)
- High safety (no thermal runaway of the positive electrode)
- Minimal self-discharge (voltage drop at 10,000 hours is less than 5%)
Cell representative characteristic value
| Laminate | Conditions | |||
|---|---|---|---|---|
| CLQ1100S1B | CLE2100S1B | |||
| Rated Voltage | 3.8V〜2.2V | |||
| Initial characteristics | Capacitance | 1100F *1 | 2100F *2 | Ambient temperature：25℃ Discharge current at：5A(*1)/2A(*2) |
| DC-IR | 1.2mΩ *1 | 6.2mΩ *2 | Ambient temperature：25℃ Discharge current at：100A(*1)/10A(*2) |
|
| Gravinetric energy density | 10Wh/kg | 24Wh/kg | ||
| Volumetric energy density | 20Wh/L | 40Wh/L | ||
| Gravinetric power density | 14kW/kg | 4kW/kg | With maximum discharge current | |
| Volumetric power density | 27kW/L | 6kW/L | With maximum discharge current | |
| Maximum discharge current | 800A | 200A | Discharge current can be continue for 1 second | |
| Temperature characteristics | Lowest temperature in the temperature range | 70% *1 | 70% *2 | Discharge current at：5A(*1)/2A(*2) |
| Highest temperature in the temperature range | 100% *1 | 100% *2 | Discharge current at：5A(*1)/2A(*2) | |
| Self discharge | Voltage drop after10,000h stored | <5% | <5% | Ambient temperature：25℃ Initial voltage：3.0V |
| Cycle durability | Cycle counts required to 80% capacitance retention |
> 1,000,000 cycles *1 |
> 300,000 cycles *2 |
Ambient temperature：25℃ Cycling current：100A(*1)/50A(*2) Condition: Constant current, continuous |
| Operating temperature range | −30℃〜70℃ | −20℃〜70℃ | ||
| Dimentions in mm | 180×126×5.3 | 180×121×5.1 | Without terminal tabs and fixing studs | |
| Weight | 0.14kg | 0.11kg | ||
These values are representative values and may be changed without notice.
