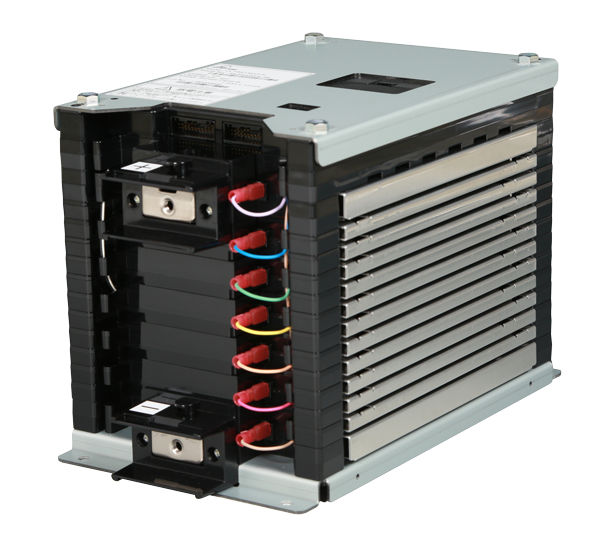

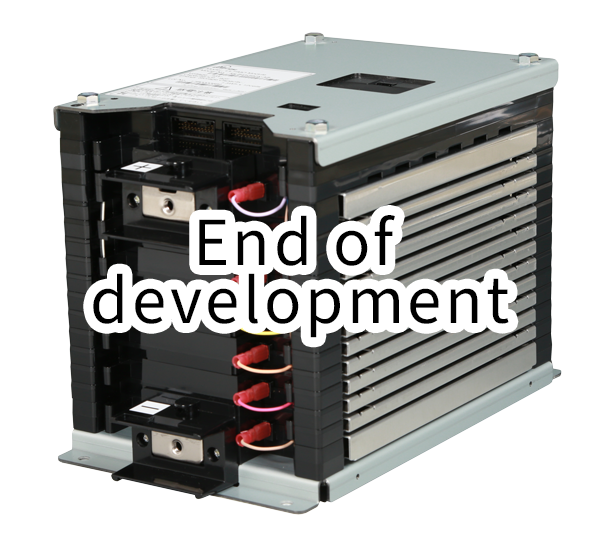

Laminated Cell Module
- High capacity / high power cells are arranged in series (4 cells / 8 cells / 12 cells)
- Correspondence up to 500 V with series connection of up to 12 units
- Correspond to large current by multiple parallel connections
- Charging and discharging by large current is possible (Maximum charging / discharging current 500 A or more)
- High reliability, high durability, high safety
- Automatic cell voltage equalization function (between cells in a module, between modules)
- No external control power source required
- Low power consumption 20 μA or less (standby)
Connection example

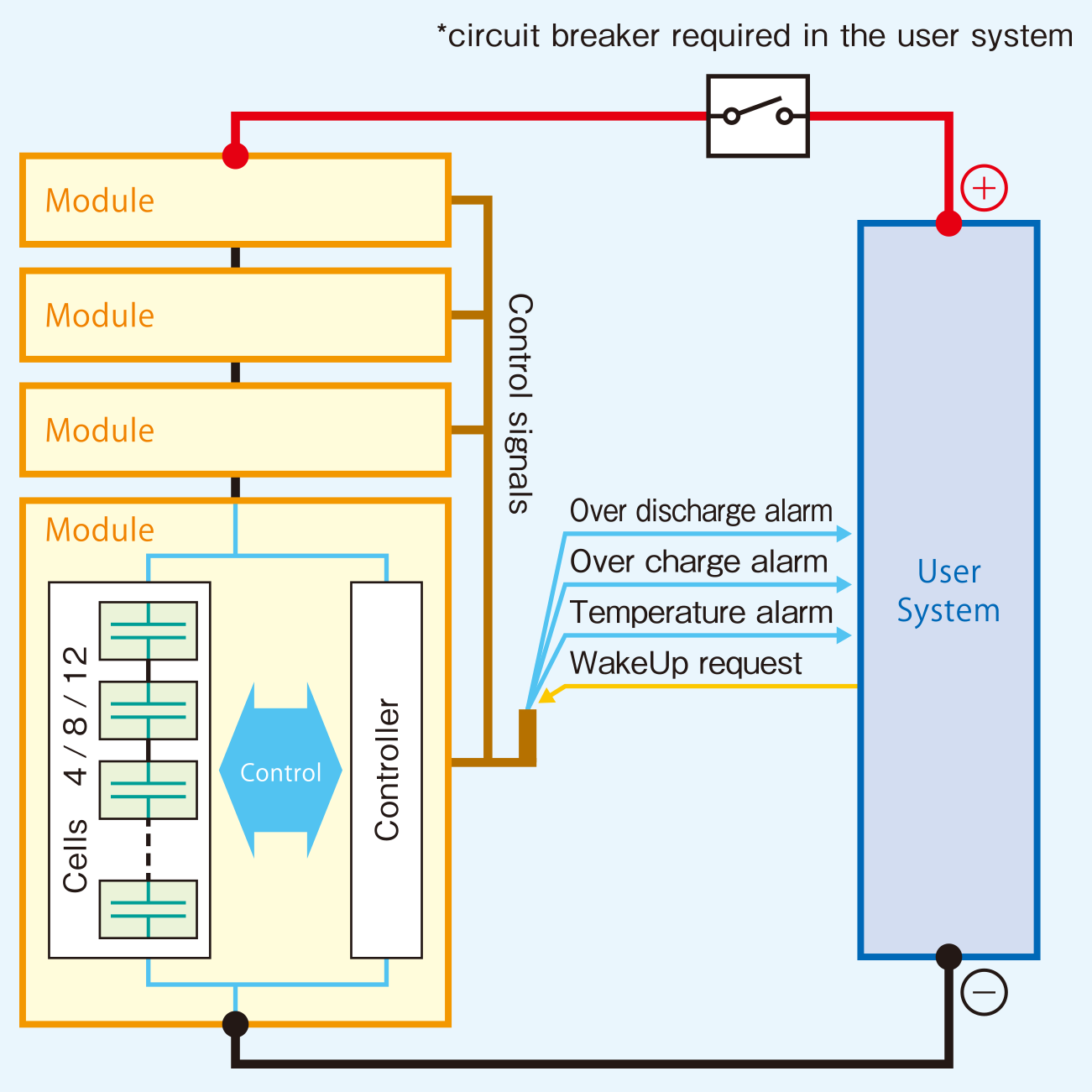

Example (1 to 4 modules in series)

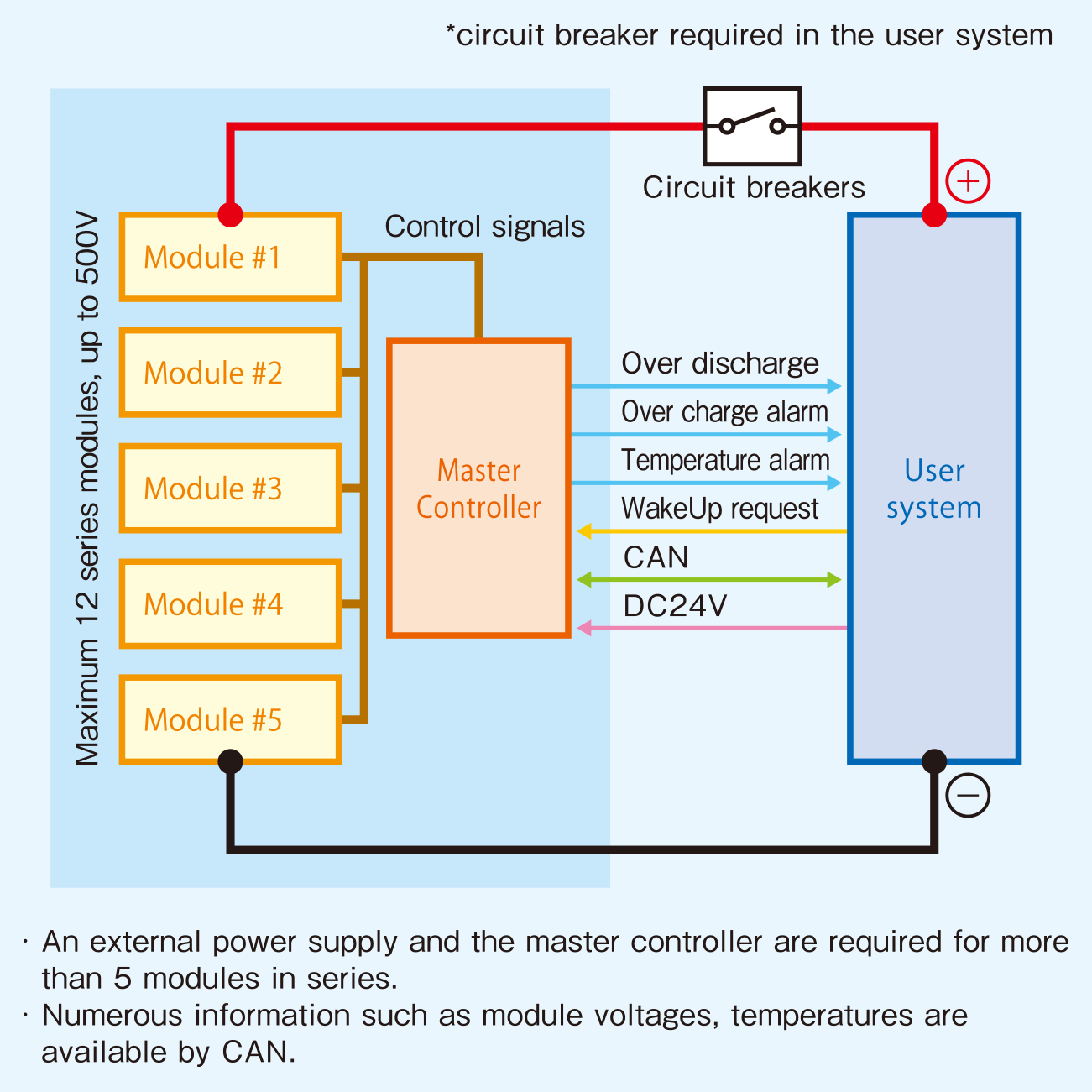

Example (more than 5 modules in series)
Main characteristics
| Model name | Cell-type | Cell count | Voltage ratings V |
Capacitance F |
DC-IR mΩ |
Dimensions in mm | Weight kg |
||
|---|---|---|---|---|---|---|---|---|---|
| W | H | D | |||||||
| MLB15G275□ | Laminate 1100F | 4 | 8.8〜15.2 | 275 | 6 | 152 | 105 | 267 | 3 |
| MLB30G138□ | 8 | 17.6〜30.4 | 138 | 12 | 152 | 142 | 267 | 4 | |
| MLB45G92□ | 12 | 26.4〜45.6 | 92 | 17 | 152 | 180 | 267 | 5 | |
Specifications
| Charge/discharge current | 60A (continuous) | Ambient temperature at 25℃ 2300F unforced cooling. | |
|---|---|---|---|
| Maximum charge/discharge current | more than 500A (< 5 seconds) | Depends on using conditions. Please consult us. | |
| Power consumption | Less than 20μA | Under sleep condition. | |
| Maximum module count in series | Up to 12 modules (maximum limit at 500V) | A master controller required for 5〜12 modules in series connection. | |
| Environmental conditions | Operating temperature range | −30℃ 〜 70℃ (at cells) | Depends on usage. Please consult us. |
| Storage temperature range | −40℃ 〜 80℃ (recommended to be between 0℃ and 35℃) | Accelerated deterioration at higher temperature. | |
| Specified relative humidity range | 20%Rh 〜 90%Rh (No dew condensation) | ||
| Insulation voltage | AC2000V 50Hz 1 minute | ||
| Balancing scheme | Resistive discharge | ||
Functionalities
| Cell monitor | Each cell voltages Cell temperature (at the center of a module) |
|
|---|---|---|
| Automatic voltage balancing | Cell voltage balancing Inter-module voltage balancing |
|
| Information communication | Module voltages and temperatures are available via CAN communication when a master controller in use |
|
| Detection of abnormality | Signal output | Over charge alarm Over discharge alarm Temperature alarm Error output（Simultaneous issueing of above alarms） |
| Control inputs | WakeUp request | |
