Laminated Cell Safety Test Results

No ignition or burst was observed in any of the overcharge test, overdischarge test, and external short-circuit test, demonstrating excellent safety.

Test Conditions Results
Ignition Burst
Overcharge Current: 200 A
Charge rate: 250%
Maximum voltage: 20 V
Using narrow jig
None None
Over-discharge Current: 200 A
Voltage: 0 V
None None
External short circuit Short circuit resistance: 3 mΩ
Atmosphere temperature: 55℃
None None

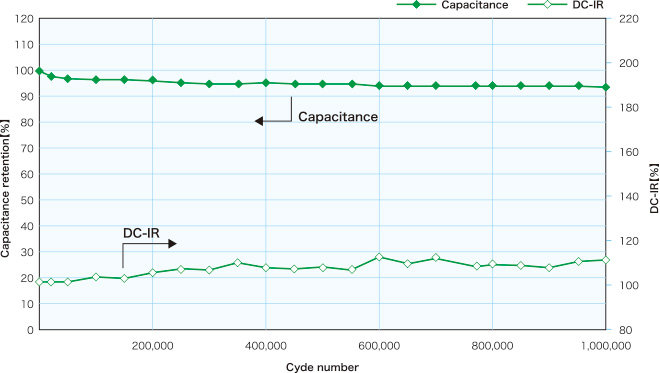

Cycle Test Results for Laminated Cells

Even after repeating charging and discharging at 100A 1 million times, no significant deterioration is seen.

Test cell Laminate1100F
Test conditions Charge: CC 100 A, 3.8 V / Discharge: CC 100 A, 2.2 V / No pause

* The test results are observed under the respective test conditions described and do not guarantee similar results under different conditions.

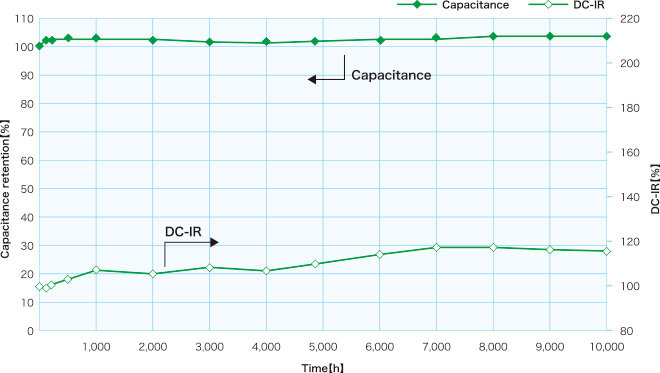

Float Test Results for Laminated Cells

No significant deterioration is seen after 10,000 hours in the 70 °C 3.8V float test.

Test cell Laminate1100F
Test conditions Voltage: 3.8V / ambient temperature: 70℃

* The test results are observed under the respective test conditions described and do not guarantee similar results under different conditions.

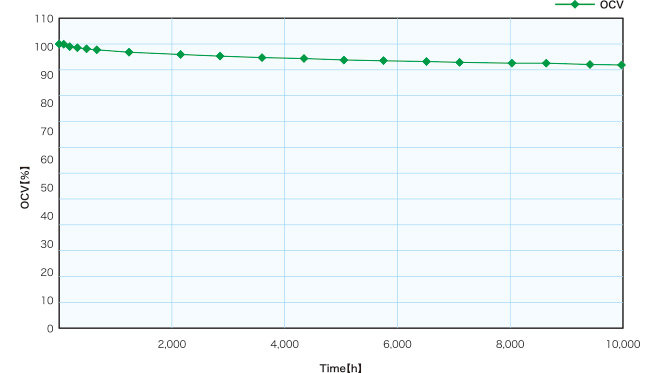

Results of Self-Discharge Test of Laminated Cell

No significant voltage drop is seen after leaving at 3.8V for 10,000 hours.

Test cell Laminate1100F
Test conditions Voltage: 3.8V / ambient temperature: 25℃

* The test results are observed under the respective test conditions described and do not guarantee similar results under different conditions.
